3M HFE-7100(九氟丁基甲醚)新一代导热液

3M Novec Engineered Fluid HFE-7100 is a clear, colorless, non-flammable and low-odor
dielectric fluid with low toxicity and favorable environmental properties. It is ideal for
use in a variety of heat transfer applications.3M氟化液HFE-7100无色透明,不燃气味小,不导电毒性小,环境友好,故可以适合不同场所的热传导。

Semiconductor半导体
Novec fluid HFE-7100 is the first of a new generation of low-GWP (Global Warming Potential) dielectric fluids with many of the properties of perfluorinated liquids. These properties permit its use in many traditional PFC applications such as thermal management in dry etchers, ion implanters and thermal shock test equipment.. 3M氟化液HFE-7100因为温室效应低,和全氟化合物(PFC)一样不导电,故可以和全氟氟化液一样用于半导体蚀刻设备,离子溅射设备和热冲击设备作为导热液

Industrial/Pharmaceutical(工业/医药行业)
This Novec fluid is an excellent alternative to methylene chloride, trichloroethylene, d-limonene, silicone oils, chlorofluorocarbons and hydrocarbons. The low temperature properties are ideal for applications in freeze drying, reaction control, manufacturing and general process control. 3M氟化液HFE-7100具有的低温性质可以替代二氯甲烷,三氯乙烯,D-柠檬烯,CFC化合物和碳氢化学物用于冷冻干燥,反应控制,制造及其他工艺控制。

Electronic Cooling电子冷却液
HFE-7100 fluid is compatible with most electronic components. It is being used for direct contact cooling of computers, transformers and fuel cells. 3M氟化液HFE-7100可以和绝大多电子零部件相容,故可以直接冷却电脑,变压器和燃料电池等电子部件。

Food Refrigeration(食品冷冻)
The unique low temperature properties of HFE-7100 fluid make it ideal for use in secondary refrigeration systems. Low viscosity translates into high heat transfer coef?cients and low pumping power requirements. Glide matching with this Novec fluid increases heat transfer effciency and reduces frost formation. 3M氟化液HFE-7100低表面张力,高效导热性能,不会结冰,故可以用于食品冷冻设备的二次冷却系统。

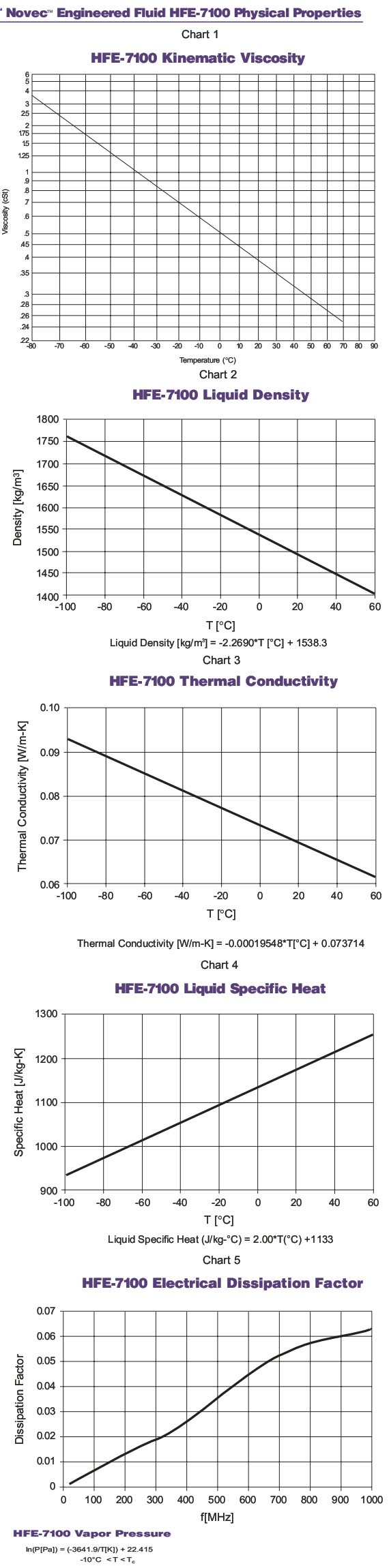

3M HFE-7100(九氟丁基甲醚)新一代导热液,热力学性质



HFE-7100HFE-7200FC-40FC-3283FC-770FC-77PF-5060PF-5070,EGC-1700EGC-1720HFE-71IPA,HFE-71DA,HFE-71DE,HFE-72DA,HFE-72DE,HFE-75003M Novec Contact Cleaner,3M Novec Electronic Degreaser,3M Novec Flux Remover
